Vi må møte en økende trussel for dataangrep mot Norge og norske interesser.

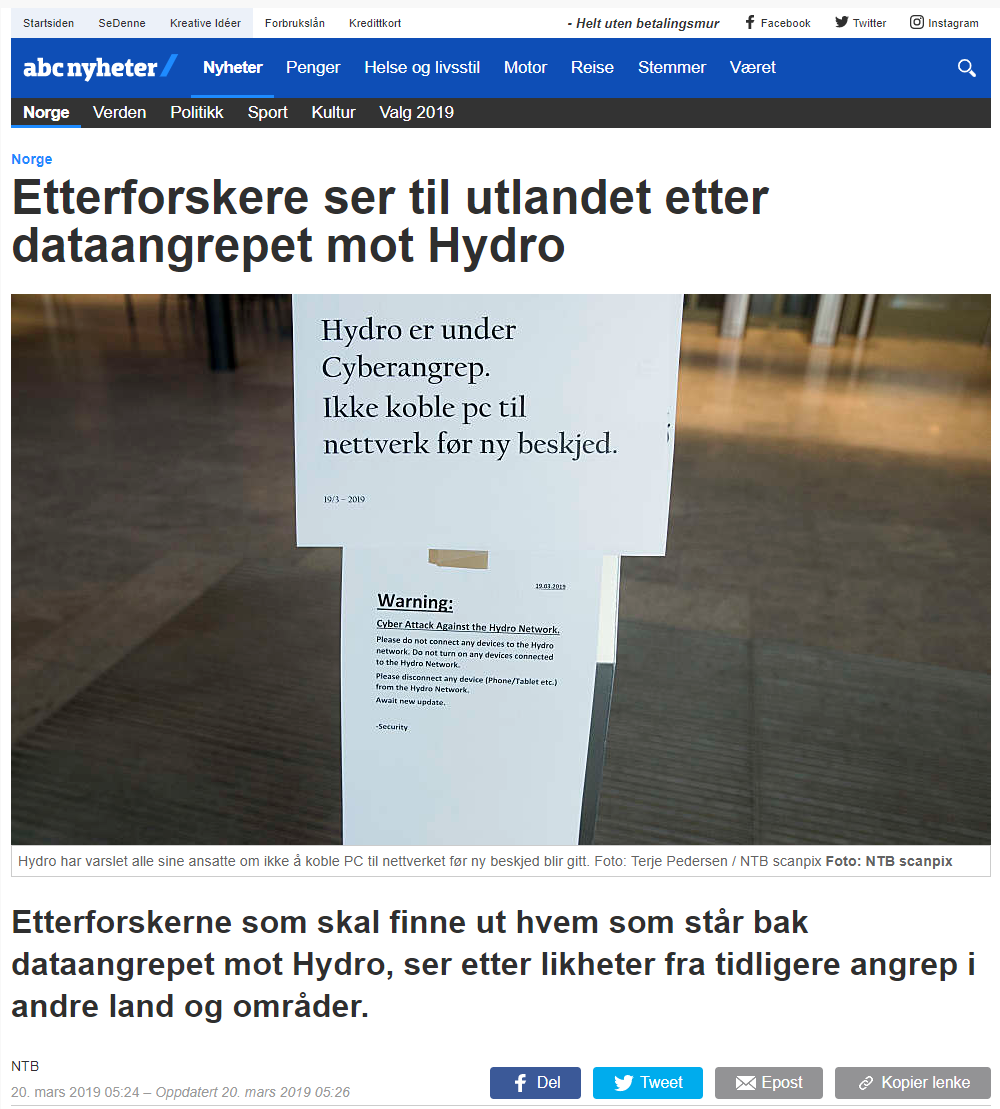

Store mediesaker i 2019:

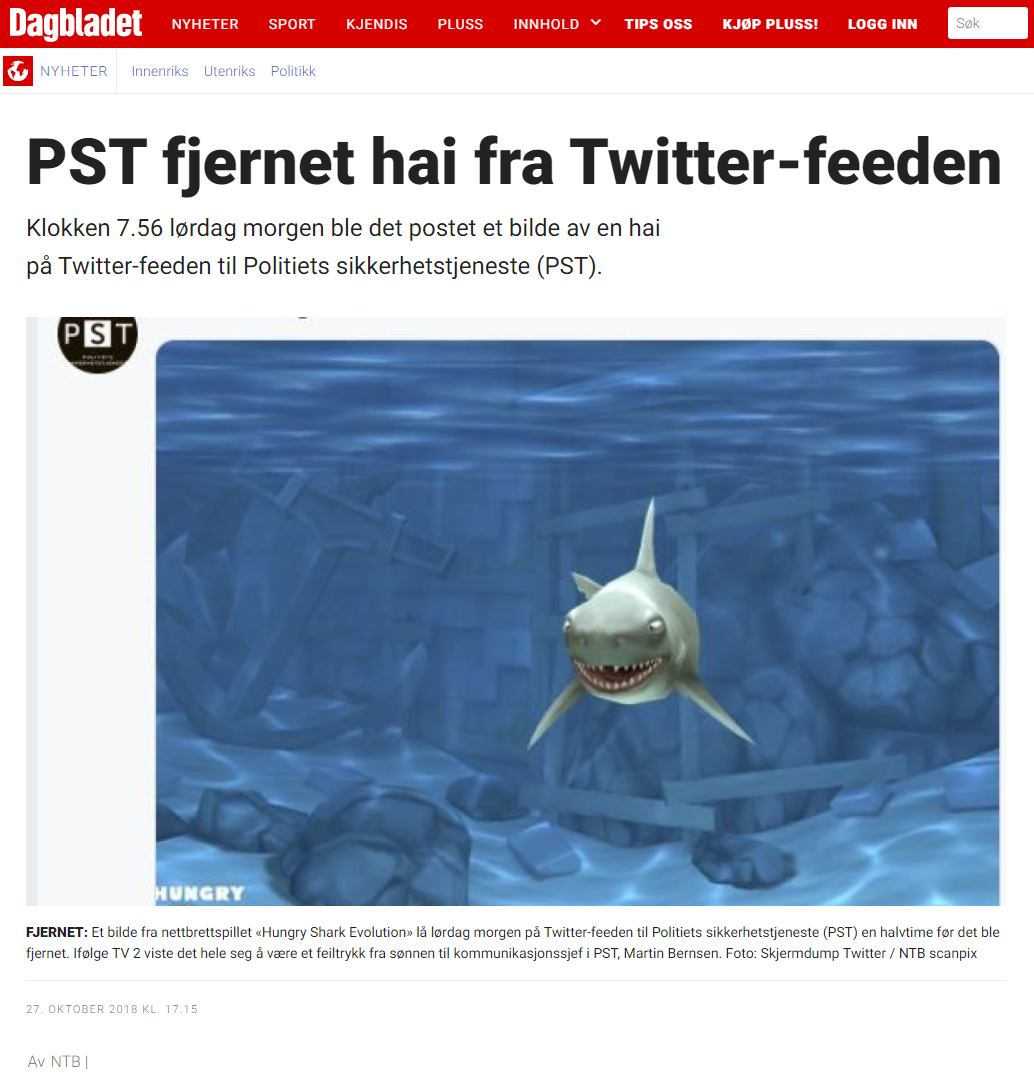

Kina anklages for å hacke VismaPST fjernet gåten i våres
Uten Roys filer ville det ikke blitt noe foredrag
😍👏 @roysolberg
Steganografi-analyse: Stegsolve
Linux: kjør install-script
Windows: last ned stegsolve.jar
root@c04ddcc8bccd:~# java -jar stegsolve.jar
?
shark.html
Linux: binæranalyse med binwalk
root@c04ddcc8bccd:~# binwalk 1337_shrk.jpg
DECIMAL HEXADECIMAL DESCRIPTION
--------------------------------------------------------------------------------
0 0x0 JPEG image data, JFIF standard 1.01
30 0x1E TIFF image data, big-endian, offset of first image directory: 8
Linux: binæranalyse med strings
root@c04ddcc8bccd:~# strings -10 1337_shrk.jpg
[...] (klippet vekk XML og tom data)
[...] (klippet vekk tom data)
8Photoshop 3.0
/haitech_secure.html
%&'()*456789:CDEFGHIJSTUVWXYZcdefghijstuvwxyz
&'()*56789:CDEFGHIJSTUVWXYZcdefghijstuvwxyz
NE/i}N|xSP
E-A#uYM6'=E`
kNP5k+a1XZ
Ql`T>^GLUd
Linux: binæranalyse med file
root@c04ddcc8bccd:~# file 1337_shrk.jpg
1337_shrk.jpg: JPEG image data, JFIF standard 1.01, aspect ratio, /
density 72x72, segment length 16, Exif Standard: [TIFF image data, /
big-endian, direntries=3, PhotometricIntepretation=RGB, /
orientation=upper-left], comment: "/haitech_secure.html", /
baseline, precision 8, 851x514, components 3
Windows: binæranalyse med filegenskaper
Det vil si... på tide å hacke 😎
For å komme videre må vi ha riktig passord
Passordvalidering i login():
password.charCodeAt(0) == 8 * 8 + 8 &&
password.charCodeAt(1) == Math.pow(9, 2) - 29 &&
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) &&
password.charCodeAt(3) == password.charCodeAt(2) &&
password.substring(4, 5) == 3 &&
password.charCodeAt(5) == 7 * 17 - 5 &&
password.charCodeAt(6) == password.charCodeAt(0) &&
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
ASCII-til-hex/bin/dec-converter
password.charCodeAt(0) == 8 * 8 + 8 &&
password.charCodeAt(1) == Math.pow(9, 2) - 29 &&
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) &&
password.charCodeAt(3) == password.charCodeAt(2) &&
password.substring(4, 5) == 3 &&
password.charCodeAt(5) == 7 * 17 - 5 &&
password.charCodeAt(6) == password.charCodeAt(0) &&
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
?
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 &&
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) &&
password.charCodeAt(3) == password.charCodeAt(2) &&
password.substring(4, 5) == 3 &&
password.charCodeAt(5) == 7 * 17 - 5 &&
password.charCodeAt(6) == password.charCodeAt(0) &&
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
H
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 &&
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) &&
password.charCodeAt(3) == password.charCodeAt(2) &&
password.substring(4, 5) == 3 &&
password.charCodeAt(5) == 7 * 17 - 5 &&
password.charCodeAt(6) == password.charCodeAt(0) &&
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
H
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) &&
password.charCodeAt(3) == password.charCodeAt(2) &&
password.substring(4, 5) == 3 &&
password.charCodeAt(5) == 7 * 17 - 5 &&
password.charCodeAt(6) == password.charCodeAt(0) &&
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
H4
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) &&
password.charCodeAt(3) == password.charCodeAt(2) &&
password.substring(4, 5) == 3 &&
password.charCodeAt(5) == 7 * 17 - 5 &&
password.charCodeAt(6) == password.charCodeAt(0) &&
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
H4
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) && // 109 = m
password.charCodeAt(3) == password.charCodeAt(2) &&
password.substring(4, 5) == 3 &&
password.charCodeAt(5) == 7 * 17 - 5 &&
password.charCodeAt(6) == password.charCodeAt(0) &&
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
H4m
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) && // 109 = m
password.charCodeAt(3) == password.charCodeAt(2) &&
password.substring(4, 5) == 3 &&
password.charCodeAt(5) == 7 * 17 - 5 &&
password.charCodeAt(6) == password.charCodeAt(0) &&
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
H4m
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) && // 109 = m
password.charCodeAt(3) == password.charCodeAt(2) && // 109 = m
password.substring(4, 5) == 3 &&
password.charCodeAt(5) == 7 * 17 - 5 &&
password.charCodeAt(6) == password.charCodeAt(0) &&
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
H4mm
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) && // 109 = m
password.charCodeAt(3) == password.charCodeAt(2) && // 109 = m
password.substring(4, 5) == 3 &&
password.charCodeAt(5) == 7 * 17 - 5 &&
password.charCodeAt(6) == password.charCodeAt(0) &&
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
H4mm
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) && // 109 = m
password.charCodeAt(3) == password.charCodeAt(2) && // 109 = m
password.substring(4, 5) == 3 && // 3
password.charCodeAt(5) == 7 * 17 - 5 &&
password.charCodeAt(6) == password.charCodeAt(0) &&
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
H4mm3
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) && // 109 = m
password.charCodeAt(3) == password.charCodeAt(2) && // 109 = m
password.substring(4, 5) == 3 && // 3
password.charCodeAt(5) == 7 * 17 - 5 &&
password.charCodeAt(6) == password.charCodeAt(0) &&
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
H4mm3
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) && // 109 = m
password.charCodeAt(3) == password.charCodeAt(2) && // 109 = m
password.substring(4, 5) == 3 && // 3
password.charCodeAt(5) == 7 * 17 - 5 && // 114 = r
password.charCodeAt(6) == password.charCodeAt(0) &&
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
H4mm3r
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) && // 109 = m
password.charCodeAt(3) == password.charCodeAt(2) && // 109 = m
password.substring(4, 5) == 3 && // 3
password.charCodeAt(5) == 7 * 17 - 5 && // 114 = r
password.charCodeAt(6) == password.charCodeAt(0) &&
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
H4mm3r
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) && // 109 = m
password.charCodeAt(3) == password.charCodeAt(2) && // 109 = m
password.substring(4, 5) == 3 && // 3
password.charCodeAt(5) == 7 * 17 - 5 && // 114 = r
password.charCodeAt(6) == password.charCodeAt(0) && // 72 = H
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
H4mm3rH
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) && // 109 = m
password.charCodeAt(3) == password.charCodeAt(2) && // 109 = m
password.substring(4, 5) == 3 && // 3
password.charCodeAt(5) == 7 * 17 - 5 && // 114 = r
password.charCodeAt(6) == password.charCodeAt(0) && // 72 = H
password.charCodeAt(7) == password.charCodeAt(1) &&
password.charCodeAt(8) == 0x69
H4mm3rH
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) && // 109 = m
password.charCodeAt(3) == password.charCodeAt(2) && // 109 = m
password.substring(4, 5) == 3 && // 3
password.charCodeAt(5) == 7 * 17 - 5 && // 114 = r
password.charCodeAt(6) == password.charCodeAt(0) && // 72 = H
password.charCodeAt(7) == password.charCodeAt(1) && // 52 = 4
password.charCodeAt(8) == 0x69
H4mm3rH4
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) && // 109 = m
password.charCodeAt(3) == password.charCodeAt(2) && // 109 = m
password.substring(4, 5) == 3 && // 3
password.charCodeAt(5) == 7 * 17 - 5 && // 114 = r
password.charCodeAt(6) == password.charCodeAt(0) && // 72 = H
password.charCodeAt(7) == password.charCodeAt(1) && // 52 = 4
password.charCodeAt(8) == 0x69
H4mm3rH4
password.charCodeAt(0) == 8 * 8 + 8 && // 72 = H
password.charCodeAt(1) == Math.pow(9, 2) - 29 && // 52 = 4
password.charCodeAt(2) == Math.pow(10, 2) + Math.pow(3, 2) && // 109 = m
password.charCodeAt(3) == password.charCodeAt(2) && // 109 = m
password.substring(4, 5) == 3 && // 3
password.charCodeAt(5) == 7 * 17 - 5 && // 114 = r
password.charCodeAt(6) == password.charCodeAt(0) && // 72 = H
password.charCodeAt(7) == password.charCodeAt(1) && // 52 = 4
password.charCodeAt(8) == 0x69 // 105 = i
H4mm3rH4i 🦈
uggc:// = http:// med 13 rotasjoner
altså ROT-13 Ceasar chiffer
👍
La oss først se etter robots.txt
http://twitterhai.tech/robots.txt ➡*klipper ut og limer inn en og en tweet til Sublime*
2 funn å ta med oss videre:
Linux: binæranalyse med file
root@c04ddcc8bccd:~# file haimat
pcap-ng capture file - version 1.0
Windows: binæranalyse med filegenskaper/Notepad
C:\haimat>notepad haimat
[...] Dumpcap (Wireshark) 2.4.6 [...]
haimat er en pcap fil!
Brukes til å lagre nettverkstrafikk
Vi har ca 400 TCP-pakker å analysere
Nettverksanalyse med tcpdump/NetworkMiner
Nettverksanalyse med Wireshark/tshark/NetworkMiner
I nettverkspakke 146 gjøres det en HTTP-forespørsel mot http://192.168.230.129
HTTP-svaret inneholder teksten "Her er dataene dine, passordet har du allerede" og link til secret_data.zip
I nettverkspakke 326 og 362 er det henholdsvis en HTTP-forespørsel og -svar på å laste ned zip-filen: http://192.168.230.129/secret_data.zip
Trafikken er over TCP-port 80 og dermed ukryptert 👍
La oss plukke ut zip-filen for nærmere analyse
Siste observasjon fra nettverkstrafikken:
Et forsøk på å laste siden http://192.168.230.129/trying_to_hide gir
404 Not Found 😜
Vi henter ut secret_data.zip med Wireshark
Vi finner et bilde i secret_data.zip:
Åpner bildet insignificant_shark.png:
Passordbeskyttet! 😢
Vi fikk beskjed om at vi allerede hadde passordet...
Hva hvis vi prøver HAI1337 som passord?
Vi kikker nærmere på filen insignificant_shark.png
Legger merke til kryptiske tegn på haien
Ligner litt på runer?
LSB betyr i IT-sammenheng ofte:
(i motsetning til MSB: Most Significant Bit)
Alle filer består av binærdata (Bytes) med "0" og "1"-tall
Vi blir sterkt oppfordret til å se på siste Bit av hver Byte (LSB-dekoding)
Det vil si...
Plukk ut siste Bit i hver Byte
og sett de sammen til ny fil
"You thought we would hide anything of SIGNIFICANCE? Not the LEAST..."
Runene hintet om LSB-dekoding
Skjult QR-kode hintet også om LSB-dekoding
Hva med MSB-dekoding? 😄
Det vil si...
Plukk ut første Bit i hver Byte
og sett de sammen til en ny fil
http://twitterhai.tech/u_are_th3_winrar.jpg ➡
2 observasjoner...
8,56 MB stort JPG-bilde!
Filnavnet inneholder rar (kompresjonsformat)
Linux: binæranalyse med file
root@c04ddcc8bccd:~# file u_are_th3_winrar.jpg
u_are_th3_winrar.jpg: JPEG image data, JFIF standard 1.01, \
resolution (DPI), density 96x96, segment length 16, \
Exif Standard: [TIFF image data, big-endian, direntries=1, \
orientation=upper-left], \
comment: "CREATOR: gd-jpeg v1.0 (using IJG JPEG v62), quality = 82", \
baseline, precision 8, 664x636, components 3
Windows: binæranalyse med filegenskaper
Ingen ledetråder så langt
Linux: binæranalyse med binwalk
root@c04ddcc8bccd:~# binwalk u_are_th3_winrar.jpg
DECIMAL HEXADECIMAL DESCRIPTION
--------------------------------------------------------------------------------
0 0x0 JPEG image data, JFIF standard 1.01
30 0x1E TIFF image data, big-endian, offset of first image directory: 8
66398 0x1035E RAR archive data, version 5.x
2552386 0x26F242 Certificate in DER format (x509 v3), header length: 4, sequence length: 30088
I ❤️ binwalk
❤️ Open Source ❤️
Ekstraherer RAR-filen ut av u_are_th3_winrar.jpg med dd i Linux
root@c04ddcc8bccd:~# dd
if=u_are_th3_winrar.jpg \
of=u_are_th3_winrar.rar \
bs=1 \
skip=66398
8914231+0 records in
8914231+0 records out
8914231 bytes (8.9 MB, 8.5 MiB) copied, 11.1746 s, 798 kB/s
Ny fil: u_are_th3_winrar.rar
Vi pakker ut u_are_th3_winrar.rar med WinRAR på Windows
Tilsvarer unrar på Linux
Hva finner vi i gratulerer.txt?
Gratulerer, du har løst de oppgavene vi hadde i denne omgang. Hvis du har lyst på reelle utfordringer og å løse oppgaver som kan bidra til å utgjøre en forskjell så håper vi at du tar deg tid til å søke. Bruk gjerne kodeordet [FJERNET, red.anm.] i søknaden din, så vi vet at du har fullført challengen! Vi ser frem til å høre fra deg! [...]
lærerikt
utfordrende
tålmodighetsprøve
dopamin-kick!
Løs CTF-er som lag:
Real World CTF,
Google CTF
Registrer deg på HackerOne og følg @Hacker0x01
Les reglene og slå deg løs! 🤑
Øk sikkerhetskompetansen
Prioriter sikkerhet
...også på IT-sikkerhet?
